Product Description:

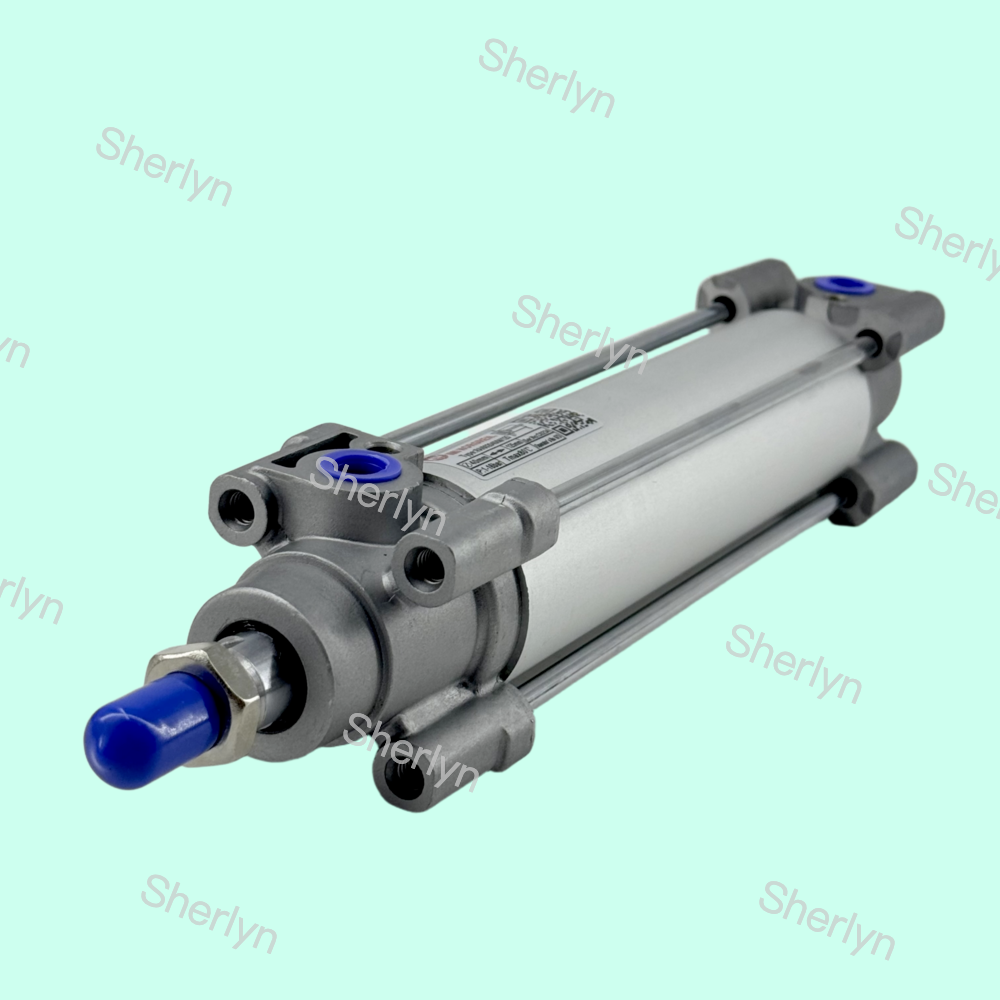

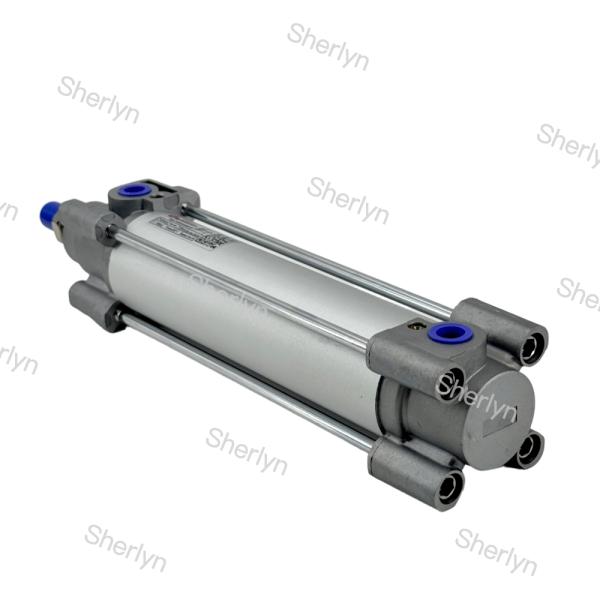

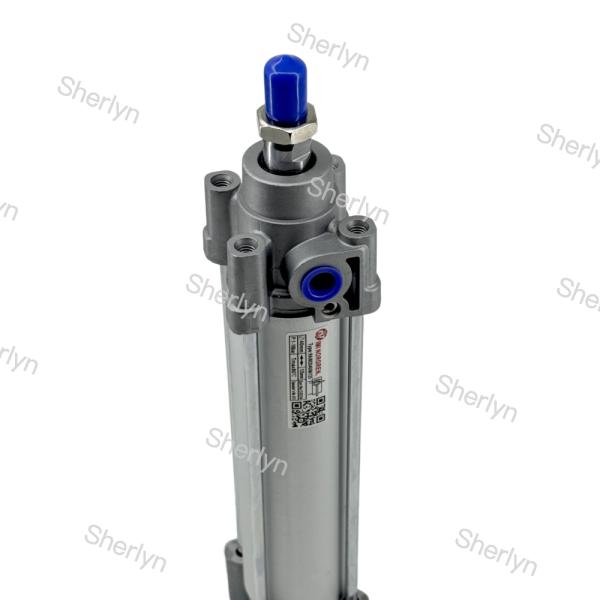

NORGREN RA Series Cylinders
The NORGREN RA series cylinders adhere to the ISO 15552 standard, ensuring excellent interchangeability and standardized design.
Structural Design and Materials
The RA series cylinders typically feature anodized aluminum alloy cylinder barrels and end caps, offering superior corrosion resistance and suitability for challenging environments. The piston rod is commonly constructed from stainless steel, such as martensitic or austenitic stainless steel, known for its wear and corrosion resistance. Seals in some models utilize polyurethane (PUR) or nitrile rubber (NBR) to prevent leaks and ensure consistent performance.
Working Principle and Performance
This series primarily operates as a double-acting type, enabling the extension and retraction movement of the piston rod by gas supply from both ends alternately. It generates driving force in two directions. The working pressure range is typically broad, ranging from 1 to 16 bar (slightly lower for some large bore models), ensuring reliable performance under low and high pressure conditions. The working temperature range is generally -20°C to +80°C (with minor variations for specific models or cylinder diameters), making it suitable for various harsh environments. Many models are equipped with adjustable pneumatic buffers like the adaptive buffer system ACS, effectively absorbing impact at the stroke's end, safeguarding the cylinder, and reducing noise.
Applications:
Structural Design and Materials:
The NORGREN RA series cylinders follow the ISO 15552 standard, featuring good interchangeability and a standardized design. These cylinders typically utilize anodized aluminum alloy cylinder barrels and end caps, offering excellent corrosion resistance. The piston rod is commonly crafted from stainless steel, like martensitic or austenitic stainless steel, which provides both wear and corrosion resistance. Seals in some models are made of polyurethane (PUR) or nitrile rubber (NBR) to prevent leakage and ensure stability in performance.
Working Principle and Performance:
The NORGREN RA series cylinders are known for their durability and reliable performance, making them widely used in automation equipment across various industrial sectors.
Applications:
- Industrial Automation and Robotics: This is the primary application area for RA series cylinders, commonly used in automated machinery for actions like pushing, pulling, clamping, lifting, and positioning. They excel in precise control and movements in robot applications.
- Material Handling and Conveying Systems: Ideal for sorting, pushing, blocking, and positioning workpieces in conveyor systems, assembly lines, and packaging machinery.
- Automotive and Aerospace Manufacturing: Utilized in assembly, testing fixtures, and various automation control processes within automotive manufacturing and aerospace engineering.
Special Environments:
- Process Industry and Special Environments: The corrosion resistance and reliability of the RA series cylinders are crucial in industries like oil and gas, chemical processing, and pharmaceuticals.
- Food and Beverage Processing: Attention must be paid to specific media and cleaning requirements in this sector.
- Control of Dampers or Valves in HVAC Systems.
Support and Services:
Our company provides comprehensive technical support and services for our Piston Pneumatic Cylinder product. Our team of skilled technicians is available to assist with any product-related inquiries, troubleshooting, and maintenance needs. Whether you require installation guidance, performance optimization, or repair services, we are committed to ensuring the optimal functionality and longevity of your pneumatic cylinder.
Packing and Shipping:
Product Packaging:
The Piston Pneumatic Cylinder will be carefully packaged in a sturdy cardboard box to ensure its safe delivery. The cylinder will be securely cushioned with bubble wrap or foam padding to prevent any damage during transit.
Shipping:
Once your order is confirmed, the Piston Pneumatic Cylinder will be shipped out within 1-2 business days. We use reliable shipping services to ensure timely delivery to your specified address. You will receive a tracking number to monitor the shipment progress.
