| Medium: | Compressed air |
| Standard: | ISO 15552 |
| Port Size: | G1/8 |
| Operation: | Double acting |
| Stroke length: | 50 mm |
| Cylinder diameter: | 32 mm |
Product Description:

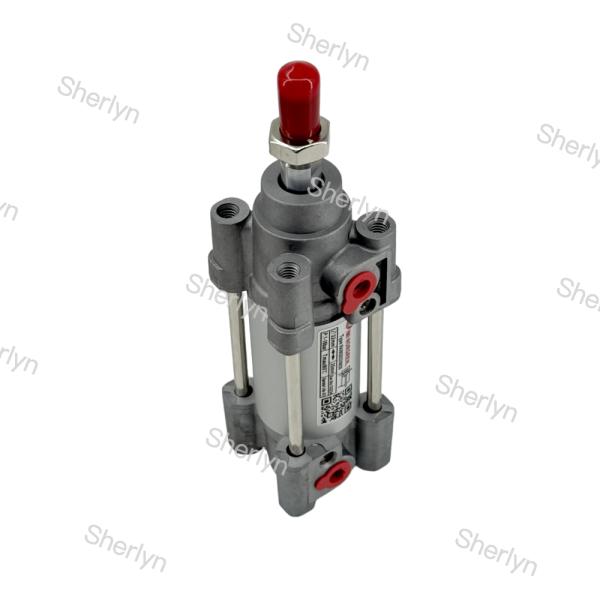

Overview of NORGREN RA Series Cylinders
The NORGREN RA series cylinders adhere to the ISO 15552 standard, ensuring a high level of interchangeability and a standardized design.
Structural Design and Materials
The RA series cylinders are constructed using high-quality materials. They typically feature anodized aluminum alloy cylinder barrels and end caps, offering excellent corrosion resistance and suitability for challenging environments. The piston rods are commonly crafted from stainless steel, such as martensitic or austenitic stainless steel, known for their wear and corrosion resistance. Seals in some models are made of polyurethane (PUR) or nitrile rubber (NBR) to prevent leaks and maintain stable performance.
Working Principle and Performance
Primarily double-acting, the RA series cylinders enable the extension and retraction of the piston rod by supplying gas alternately from both ends, generating driving force in two directions. They operate within a broad pressure range, typically between 1 bar and 16 bar (slightly lower for large bore models), ensuring reliable performance under varying pressure conditions. Their working temperature range generally spans from -20 °C to +80 °C (subject to slight variations based on specific models or cylinder diameters), making them suitable for diverse environmental conditions. Many models come equipped with adjustable pneumatic buffers like the adaptive buffer system ACS, effectively absorbing end-of-stroke impacts, safeguarding the cylinder, and reducing noise levels.
Applications:
NORGREN RA Series Cylinders
The NORGREN RA series cylinders adhere to the ISO 15552 standard, ensuring excellent interchangeability and a standardized design.
Structural Design and Materials
The RA series cylinders typically feature anodized aluminum alloy cylinder barrels and end caps, offering superior corrosion resistance and suitability for challenging environments. The piston rod is commonly crafted from stainless steel - martensitic or austenitic stainless steel - providing wear and corrosion resistance. Certain models use seals made of polyurethane (PUR) or nitrile rubber (NBR) to prevent leakage and maintain stable performance.
Working Principle and Performance
The NORGREN RA series cylinders are renowned for their durability and reliable performance, making them widely utilized in automation equipment across various industrial sectors.
Industrial Automation and Robotics
The RA series cylinders find primary application in industrial automation and robotics, facilitating actions such as pushing, pulling, clamping, lifting, and positioning in automated machinery. They are particularly suitable for precise control and movement in robot applications.
Material Handling and Conveying System
These cylinders are crucial for sorting, pushing, blocking, and positioning workpieces in conveyor systems, assembly lines, and packaging machinery.
Automotive and Aerospace Manufacturing
In automotive manufacturing and aerospace engineering, RA series cylinders are used for assembly, testing fixtures, and various automation control processes.
Process Industry and Special Environments
The corrosion resistance and reliability of RA series cylinders make them valuable assets in the oil and gas industry, chemical processing, and pharmaceutical industry.
For food and beverage processing, attention must be paid to specific media and cleaning requirements.
They are also employed in controlling dampers or valves in HVAC systems.
